Electrical Components Dealers in Punjabi Mohalla, Ambala

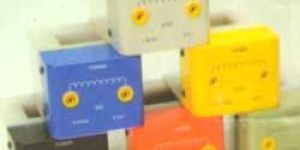

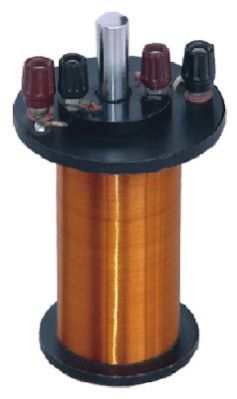

Heavy gauge enamelled copper wire, approximate resistance 0.5 ohms wound on former 110 x 30 mm length x diameter. Secondary coil of fine enamelled copper wire, approximately resistance 100 ohms on former 110 x 82 mm length x diameter. Both coils fitted with 4 mm sockets. Iron core 120 x 15 mm length x diameter.

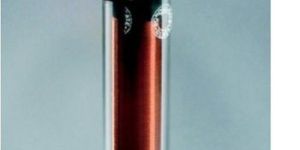

DESCRIPTION : For determining temperature co-efficient resistance of copper, comprising a coil of fine enameled copper wire of about 7-10 ohms resistance, wound non-conductively on an insulating frame and connected to thick copper wire fitted with terminals. The coil is enclosed in a glass tube of borosilicate glass to contain paraffin oil. The rubber stopper is drilled for a thermometer. Tube size approx. 100mm x25mm dia

Code: EEF0001 Inductive Load. Inductive Load ManufacturerFeatures:    It works on variation of air gap principle.    Works on principle of air gap variation.    High grade silicon used with stamping    Fitted in trolley with MS box coated with powder    Voltage and ammeter are used to find the voltage and current at variable loads    Copper conductor connected with 3PH choke coil star.    For the high insulation strength, wound coils are impregnated in vacuum pressureAvailable Rating:    5A/10A/15A/20A for 1ph and 3ph types of Inductive load

With primary of heavy gauge enamelled copper wire, approximate resistance 0.5 ohms wound on former 110x30 mm. length x diameter. Secondary coil of fine enamelled copper wire, approximately resistance 100 ohms on former 120 x 82 mm. length x diameter. Both coils fitted with 4 mm. sockets. Iron core 160x15 mm. length x diameter.

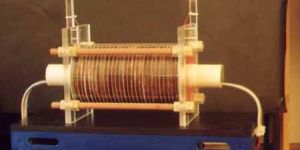

We are identified as one of the most dependable Magnetic Induction Coil Manufacturers in India. Coils are wound with highly insulated copper wire impregnated with parrafin wax. The spark suppression capacitor is housed in the base. A pair of pointer electrodes with insulated handles for adjustment of the spark gap is provided for the proper functioning of the Induction Coil. Moreover, the Electromagnetic Induction Coil is widely demanded in the international market for accurate result after the experiment.

Exp-1 To measure the magnetic flux density along the x-axis of the circular coils when the distance between them a = R (R = radius of the coils) and when it is greater and less than this. Exp-2 To measure the spatial distribution of the magnetic flux density when the distance between coils a = R, using the rotational symmetry of the set-up. PHYSICS, Class XII, Part - 1, Chapter - 4, Moving Charges & magnetism. Magnetic filed measure in boh the direction. Distance between coil is adjusted in U channel bench. Electrical safety tested for Power supply & Gaussmeter.

Aii New Thevenin Theoram According to Thevenin's theoram, any two terminal linear network can be replaced by an equivalent circuit consisting of a voltage source (Vth) and a series resistance (Rth). the Thevenin voltage Vth is the open circuit voltage at the output terminals and the Thevenin resistance Rth is equal to the resistance between the output terminals, when the voltage sources in the network are replaced by their internal resistances. (The Thevenin resistances is also equal to the ratio of the open circuit voltages to the short circuit current at the output terminals). By making an electrical network and its Thevenin equivalent circuit, the voltages and currents in the two circuits, for various load resistances are compared. Specifications: Power Supply: 0 - 6 V DC Variable at 1000 mA Resistances: 5 of different values 100, 220, 330, 520, 560 ohms etc. Potentiometer: For variable Resistance/Step Switch Voltmeter: 0 to 6 Volt DC 65 mm round Optional: Digital Multimter (for Resistance). Complete with Manual and Connection Wire.

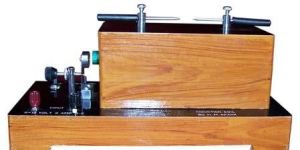

Induction Coil[induction Co] to Produce High Voltage Alternating Current or Pulses of High Voltage Current from a Low Voltage Direct Current Source. Suitable for Use with Gas-filled Discharge Tubes, Vacuum Tubes, Eudiometers and for General Laboratory Work. Comprised of Two Coils Fully Enclosed in a Polished Wooden Case with Binding Posts. Includes Adjustable Vibrator System, Primary Current Polarity Reversal and Off-on Switch, a Condenser Enclosed in the Box and Special Alloy Contacts. Spark Gap At the Discharge Points Can Be Adjusted By Sliding Rods Back and Forth. Requires 6-12 Volt Power Source such as a Battery. Maximum Spark Length Cat. No. 25mm 50mm

Today Electrical Engineering Lab Equipment has become the core of training kits industry. In a rapidly changing technical environment it has become quite a challenging task to keep pace with the latest technological developments in complete list of electrical engineering lab training equipment. But we have taken this challenge for preservation and evolution of electrical engineering and have developed an exemplary range of engineering lab training equipment.

Heavy gauge enamelled copper wire, approximate resistance 0.5 ohms wound on former 110 x 30 mm length x diameter. Secondary coil of fine enamelled copper wire, approximately resistance 100 ohms on former 110 x 82 mm length x diameter. Both coils fitted with 4 mm sockets. Iron core 120 x 15 mm length x diameter.

Spark length approx 30mm, operates on 6 to 8 V D.C. Similar to Cat No. P-7975 as above. A fully adjustable trembler system is incorporated and spark suppression capacitors are housed in the base.

As a reliable name, we ensure that payment procedures remain secured with us. For this, we issue invoice to the customers stating the products, quantities and agreed prices. Noteworthy Supplier of electronics engineering lab equipment, we are customers' favored option in this domain.

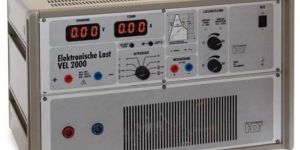

We are offering electronic load. Vel 2000 is an electric load with manual and programmable operation and respective maximum power ranges between 50 and 2000 w. They are used in various applications (e.g. Training, research, development, laboratories, inspection, production, test field, quality assurance) for fast and precise simulation of voltage loads. They are useful for e.g. Static and dynamic power supply and battery testing. These electronic loads easily simulate a multitude of load applications. Simple and clear operation of electronic loads is achieved via operation mode switch.

We provide a large array of Brass Electrical Parts that is characterized by excellent durability and performance. Our Brass Electrical Switch Parts are designed to suit various industrial and commercial electrical applications. Known for better functionality and high efficiency, our brass electrical parts are available at very competitive prices. We have carved a niche as the most predominant Brass Electrical Components Manufacturer and one of the ecstatic Suppliers of the same.

Voltage utilized in industry are of either Resisitive, Inductive or Capacitive types these provide various types of power factor and the power system behaves accordingly. Resistive load banks are used to provide braking effect or for Heat dissipation.These have canthel wires wounded on porcelain tubes through which electricity is passed & current flows, normally for Resistive loads the Power factor is unity. This Model is the Industrial/Educational model suitable for demonstrating to students the complete know of the Basics, Loading provided in steps, Study of Efficiency & Maintenance of these Loads packaged in small rating. Students can make connections of their own with the help of the terminations provided. Technical Specs :- Power ratings available : 1KW / 2KW / 5 KW / 10KW- Voltage Primary : 440V AC 3Phase/ 220V AC Single phase /220V DC- Enclosed in cabinet with Steps provided for loading, meters provided for each phase & terminations brought out on Banana terminals

We are offering a huge product basket that the customers can obtain right from Chandigarh(India). All thanks to our modern transit amenities owing to which we are capable to furnish safe and time-bound deliveries.

We have carved a niche as one of the prominent Physics Instruments Manufacturers and Exporters from India. Various national as well as international clients are placing bulk orders for the Physics Lab Instruments due to the unmatched quality and accuracy in performance. The use of optimum quality materials also make them ideal for respective applications. Additionally, customers are eased with the availability of the General Physics Instruments in sizes and dimensions meeting the international standards.
