Cement Autoclave Dealers in Delhi

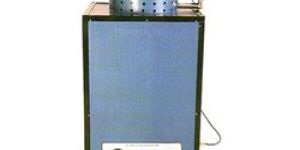

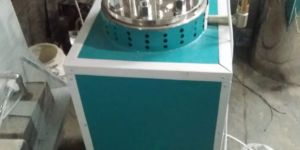

We are offering � This Autoclave is suitable for conducting accelerated soundness tests on cements or the autoclave expansion test, requiring constant steam pressure with the corresponding constant temperature. � It consists of a stainless steel cylinder with an insulated cover, mounted on a sturdy supporting frame, enclosed in a heat insulated metal housing. � The attached control until encloses a sensitivity pressure regulator and pressure gauge, power switches and pilot lamps for controlling the electric heating units. � Supplied complete with Test Bar Holder, Special Rack to hold specimens above water level in the autoclave and in a vertical position to expose them in the same manner. � Auto clave for soundness test designed for the performance of expansion test of cement it consists of cylindrical vessel in special steel, that can receive rack holding 10 specimens of 25 x 25 x 250mm. � This vessel is thermally isolated and coated with a sheet protection. Heating is achieved through two special resistance. � The control panels comprises of a pressure gauge with regulator incorporated thermostat and startstop controls, button for temperate setting the auto clave is fitted with safety .

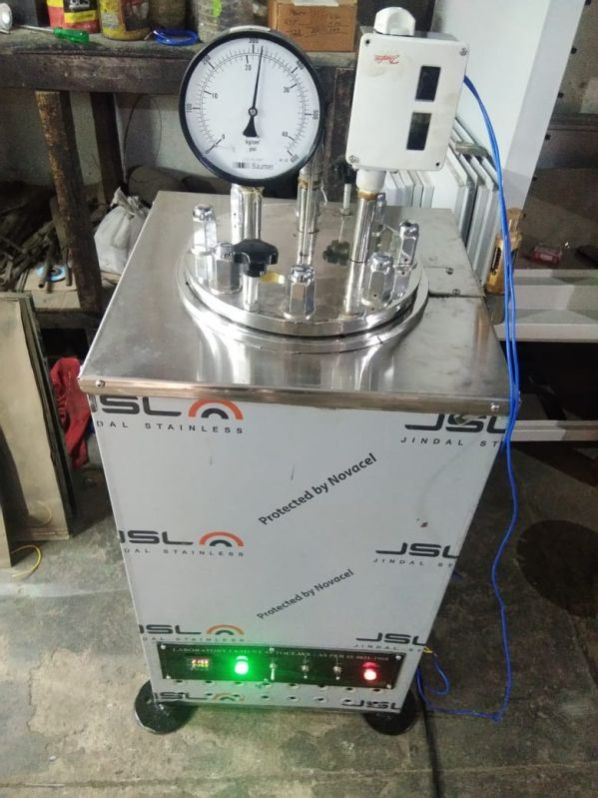

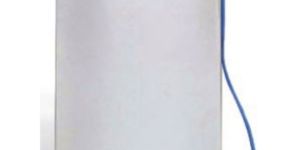

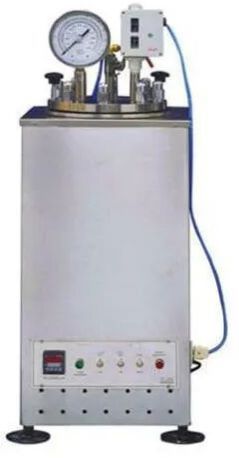

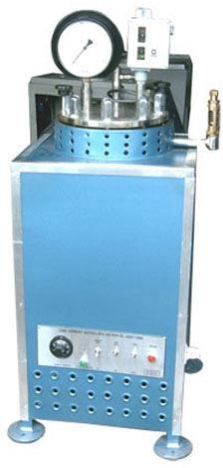

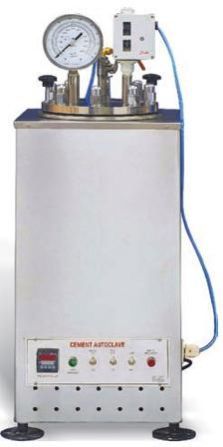

The Laboratory Cement Autoclave is suitable for conducting accelerated soundness tests on Cement or the Autoclave expansion test. The equipment meets the requirement of IS: 4031 (P-3). The equipment consists of a Stainless Steel Pressure Vessel with insulated outer shell, fabricated out of high quality Stainless Steel Sheet. The pressure inside the vessel is controlled through a micro processor based PID controller. The equipment is supplied complete with spring loaded safety valve pressure gauge, PID controller with RTD for control of Heater unit.Specification Working Pressure : 21 Kg / cm² ± 1kg / cm² at 215° C Pressure Vessel : ID 150mm X Depth 500 mm Overall Dimensions : 390 mm (L) X 390 mm (W) X 810 mm(H) Weight : 70 Kg Heater : 3000 Watts Supply : 220 V, 50 Hz, 1 phase Panel mounted PID controller with international safety certifications. Product Code: EKE 408-1Standrad: IS : 4031 (Part - 3)Optional Extra EKE 40201 Set of 20, Smooth Reference Points EKE 40501 Set of 20, Knurled and Threaded Reference Points FeaturesRust proof stainless steel pressure vessel & enclosure Microprocessor based PID controller for accurately controlling the temperature & pressureThree fold safety mechanism for the equipment & the operator Reliable sillicon rubber lid sealing gasket. Very Compact

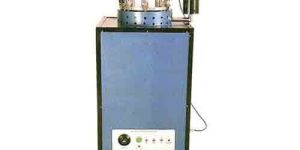

We are offering Cement Autoclave. AUTOCLAVE FOR TILES Laboratory TILE AUTOCLAVE: Pressure up to 21 kgcm is 4031 Autoclave is suitable for conducting accelerated soundless tests on cement. It consists of a stainless steel Cylinder with a welded heated insulation. Mounted on a sturdy supporting frame and enclosed in a heat insulated metal housing which is attractively finished paint The control unit is attached to the side of the housing enclosing a sensitive pressure regulator and pressure gauge, power switch and pilot lights for controlling the electric heating unit. Inside working chamber 14 “ X 18” APPROX. Suitable for operation on 220 V, single phase AC Supplied complete with Test Bar Holder rack to hold 5 TILES OF 200 MM X 150 MM PROVIDED with one stand where tiles are placed separately. Inside chamber is made of stainless steel but lid of the AUTOCLAVE IS MILD STEEL DULY CHOROME PLATED. Since for tile test temp is required 168 but we will provide the test upto 200 degree as per your choice. With digital temperature controller and automatic pressure control switch manual type.

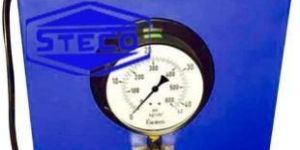

We are looked upon as one of the reliable Laboratory Cement Autoclave Suppliers in India. The Industrial Cement Autoclave offered by us is manufactured using premium quality raw materials and advanced technology.

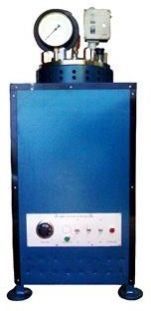

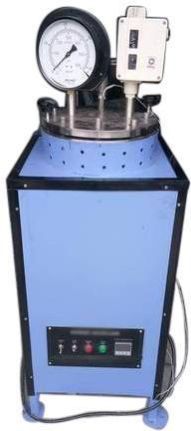

The autoclave is suitable for conducting accelerated soundness tests on cements or the autoclave expansion test requiring constant steam pressure with the correspondent constant pressure. It consists of a stainless steel cylinder with a welded heat insulated metal housing attractively finished. The attached control unit encloses a sensitive pressure regulator and pressure gauge. Power switches and pilot lights for controlling the electric heating units. Inside chamber dimensions 10.5 cm diameter x 40.5cm height suitable for operation on 230 V, 50 Hz Single Phase A. C. supply. Supplied complete with test bar holder, special rack to hold specimens above water level in the autoclave and in a vertical position to expose them in the same manner. A Digital PID Controller is fitted for controlling the desired temperature.

The apparatus comprises one each of permeability Cell “U” tube manometer with stop cock mounted on a laminated wooden stand, perforated metal disc, plunger, Rubber, Stopper, Rubber tube with rubber bulb. Spares : a) Laminated wooden stand with ‘U’ tube monometer with stop cock. b) Permeability Cell complete with perforated metal disc, non -perforated disc and plunger.

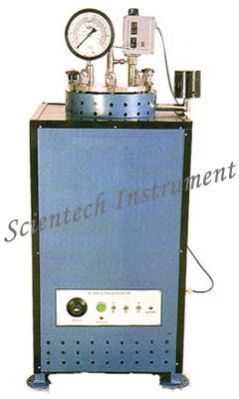

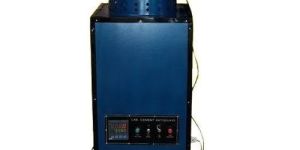

Cement Autoclave by Scientech Instrument is a perfect cement testing equipment available today. These industrial cement autoclaves are safe to use and come with durable construction.Cement autoclaves by Scientech Instrument are made of double walled units. Outer chamber is constructed with thick high grade sheet duly pre-treated with primers and painted with stove enamel or power coated ensuring long lasting and rust proof performance. The inner cylinder is made of heavy gauge welded steel sheet. These cement autoclaves are air insulated form inside and in some cases as per customer requirement mineral glass wool insulation is also provided. These units are equipped with strong locking lid which is made of thick stainless steel plate to provide better safety while operating the machine and mounted on a sturdy supporting frame. The pressure inside is controlled by pressure gauge and spring-loaded safety valve. These units come after passing hard research and testing procedure. To deliver long lasting and durable equipment our cement autoclave units are tested up to 2.5times the normal working pressure.Features:     Equipped with wing nut locking system     High grade spring loaded safety valve of brass     Fast and reliable accurate results     Versatile usage     Equipped with steam stock provision     Energy Efficient     Tested on up to 2.5 times the normal working pressure     Customized Cement Autoclave Models also available

The high pressure autoclave is designed for conducting accelerated soundness tests on cement or the autoclave expansion test. It is also suitable for other testing purposes requiring constant steam pressures between 60 and 350 pounds per squire inch, with the correspondent constant temperature. The autoclave consists of a drawn steel cylinder with a bolted cover. It is mounted in in a sturdy supporting frame and enclosed in heat insulated metal housing which is attractively finished in stove krankle paint. The control unit attached to the side of the housing encloses a sensitive pressure regulator and pressure gauge, power switches, pilot-light for controlling the electric heating units. Inside chamber dimensions are 6-d18" in dia by 16" hight fitted with 3 Nos. heating elements of 2400 watts.

Cement Autoclave Acm-32068-A provides an accelerated means of estimating delayed expansion of Portland cement caused by hydration of calcium oxide, Magnesium Oxide, or both in accordance with procedures described in ASTM C151. In this operation, changes in length of test bars of cement are measured after being exposed to controlled steam pressure and temperature for a prescribed period of time. Wing nut lock locking mechanism for ultimate ease of operation and safety. Conforming to ASTM C151, AASHTO T 107 Huger grade spring loaded safety valve of brass., duly chrome plated. High accuracy and reliable pressure gauge. Steam Stock Provision Versatile usage Ergonomic Design Energy Efficient Double Safety Radial Locking Arrangement Double Safety Valve Protection Hydraulic Testing Upto 2.5 times the working pressure Calibration And Protocol Documentation

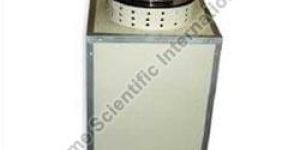

It consists of a stainless steel cylinder with an insulated cover, mounted on a sturdy supporting frame, enclosed in a heat insulated metal housing, attractively finished. The attached control unit encloses a sensitive pressure regulator and pressure gauge, power switches and pilot lamps for controlling the electric heating units. Inside Chamber dimensions: 15 cm dia x 60 cm height, with stainless steel Cylinder (20 kg/cm2 pressure capacity) Suitable for operation on 220 V, 50 Hz, Single Phase, AC Supply and supplied complete with Test Bar Holder, Special Rack to hold specimens above water level in the autoclave and in a vertical position to expose them in the same manner.
