Level Gauges Dealers in Jogeshwari, Mumbai

Transparent Flat Glass has precision moulded prismatic grooves cut on inner surface, which comes in contact with liquid. Light striking on glass portion covered by liquid is refracted (absorbed) making this portion appear BLACK, whereas glass portion covering vapour space reflects light making it appear SILVERY-WHITE.Thus, a sharp clear line marks the liquid, eliminating all possibilities of errors in reading. Transparent Flat Glassis a clear glass for visual level indication & specially for interface services or where the liquid is dirty or viscous.

The Tubular Glass Level Indicator is commonly used for visual liquid level observation. The Tubular Glass Level Indicator is a simple and reliable device used for direct reading in atmospheric or pressurized tank applications. The Tubular Glass Level Indicator is mounted parallel, at the side of the tank. As the process level fluctuates, the level in the transparent glass tube changes accordingly and gives local liquid indication. Technical Specification :  New Bolted Gland with teflon packing ensures positive leak tightness for full vacuum as well as 10kg/cm2 pressure service. Sturdy Protection : Glass tube is protected by box section made out of two M.S. channels Beam strength of the guard is so good that even if man stands on the indicator supported at two ends, the tube remains intact. Light Weight : 75% less in weight compared to Reflex and Transparent liquid level indicators Extraordinary strength but less bulky   Excellent Visibility : 16/19/25mm O.D Borosilicate glass gives excellent visibility Surface tension effects are eliminated   Test Pressure : Full vacuum and/or 10 kg/cm² compressed Air   Attributes : Liquid indicator Durable Excellent quality Reliable

Gauge Glass, Toughened Glasses, Sight Glass, Sight Glass-1, Glass Product

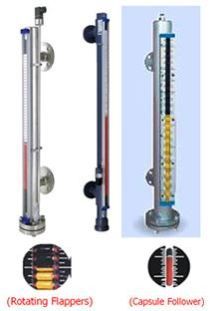

It is commonly used for visual level indication of liquids, which attack glass or are hazardous, flammable, toxic, aggressive, agitated, contaminated and under high temperature & Pressure i.e. for services where glass gauges are unsafe. Features :Rugged gland less construction to provide safety in handling toxic, flammable & highly corrosive Liquid. Suitable for glass attacking liquid, where conventional gauge glass can not be used Construction & Operation :It consists of a chamber and an internal float in non-magnetic material compatible with the liquid. The float containing a magnetic system rides on liquid level and is coupled to an external visual indicator, which comes in two options. The simnpler & economical design consists of a RED magnetic follower Capsule, that moves within a glass tube Filled with water (to reduce friction) and can be read against a scale. The Other system is expensive and consists of a series of Bi-colour flappers. White on front side and contrasting RED on the reverse. These flappers rotate corresponding to float movement, thus changing their colour from white to red as the float rises and vice-versa when the float falls. As such the liquid represented by an external RED coloumn. Operating Principle :These models consist of Bi-coloured magnetic rollers equipped with small rod magnets which are rotated one after another at an angle of 180o by the directed field of the Permanent magnet inside the float.In addition, Level sensing elements can be fixed directly to the float cage, so that simultaneously liquid level is electrically measured through smart transmitter with output of 4-20mA. It is possible to connect Level indicating Meters and Set Point Relays at any distance for control and display purpose. The Magnetic Level transmitters can also be supplied with HART PROTOCOL.Moreover it is possible to attach bistable Magnetic Switches to the Magnetic Level indicator in order to get switching at any desired liquid level.

Radix manufactures and supplies a complete line of level gauges. We have magnetic, reflex, tubular and float level gauges for various applications and fluid environments. Each product can be customized for you.

We offer seemag magnetic gauge. The seemag gauge meets the requirements of solas (safety of lives at sea), and is also type approved by many worldwide shipping authorities including; det norske veritas (dnv), rina, lloyds register of shipping, american bureau of shipping (abs) and germanischer lloyds.

Tubular Glass Level Indicato

Liquid Level Indicator, Dimond Cutters, Dimond Saw Blades, Dimond Cloc

Remote Level Indicator

Industrial Light Fitting, Electronic Kilowatt Meters, Mild Steel Hex Nu

Glass Level Gauge

Level Indicators, Digital Temperature Indicators, Manometer

We are supplying products like as side glass level indicator.
