KEWIL Ring and Ball Apparatus Ring and ball apparatus is meant for determining soft point of bitumen. Using various scientific principles it is also used in petroleum industry, construction projects, paint industry etc. The ring & ball apparatus is used to determine the temperature at which a sample of bituminous material loaded by a steel ball of 9.5 mm diameter, drops a specified distance when heated under specified conditions. It is used to determine softening point of bitumen.

Often, existing concrete structures will need to be examined and tested to ensure the concrete remains of adequate strength and durability. Rebound hammer surveys can be conducted to provide a rough estimate of concrete strength, where it is not possible to determine this by more accurate means such as core extraction and testing. The test involves using a special rebound hammer, which measures the recoil of a piston against the concrete surface when a standard force is applied. This recoil can then be correlated approximately to concrete strength. The rebound hammer consists of a barrel in which is housed a hammer mass attached to an impact spring which slides on a guide bar. A plunger is attached to the guide bar which is pressed against the surface to be tested. As the piston is pressed against the surface to be tested, on reaching the compressive strength, the hammer mass is released and rebounds to a certain extent, according to the strength of the surface, which is indicated by a rider on a calibrated scale. A lock button fixed on the body of the hammer lock the rider in place and the rider can be reset to zero Position by using the same button. The equivalent compressive strength can be computed from the chart supplied. It is suitable for specimen of compressive strengths 100-700Kg/cm. The instrument, complete with a grinding stone for polishing the test surface, is supplied in carrying case.

The J-Ring test is used for determining the passing ability, the flow spread and the flow time of self compacting concrete as the concrete flows through the J-Ring apparatus. The J-Ring narrow gap with ø18 mm x 16 smooth bars is manufactured from stainless steel. The Slump Cone is made from sheet steel protected against corrosion, with diameters; top 100 mm, base 200 mm and with a height of 300 mm. The Base plate is 900x900x3 mm square, made of stainless steel with engraved circles of 200 mm and 500 mm diameter conforming to EN 12350- 8. The Steel weighted collar is used to stabilize the slump cone on J-Ring or slump flow tests. Minimum apparatus for the J-Ring test are J-Ring with narrow gap and slump cone.

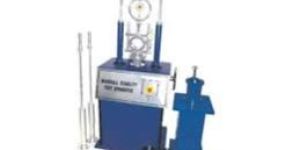

The test is applicable to hot mix designs using bitumen and aggregates upto a maximum size of 25mm. In this method, the resistance to plastic deformation of cylindrical specimen of bitumenous mixture is measured when the same is loaded at periphery at 5 cm per min. This test procedure is used in designing and evaluating bituminous paving mixes. The test procedure is extensively used in routine test programmes for paving jobs. There are two major features of the Marshall method of designing mixes namely, a) Density – voids analysis b) Stability – flow tests. The marshall stability of mix is defined as a maximum load carried by a compacted specimen at a standard test temperature of 60ºC. The flow value is deformation the marshall test specimen under goes during the loading upto the maximum load, 0.25 mm units. In this test and attempt is made to determine optimum binder content for the type of aggregate mix and traffic intensity.The apparatus consists of :1) A loading unit motorized, capacity 5000kgf with two telescopic pillars and an adjustable cross head. Limit switches are fitted inside to control upward or downward movement of the pillars. On-off reversing switch and indicator lamps are on the front side while a hand wheel to manually move the pillars is on the right. The load frame has fixed speed of 5.08cm per minute. Operated on 230 Volts A.C.2) 1 No. Compaction pedal with specimen mould holder.3) 2 Nos. Compaction Rammers, 4.5kg weight and free fall 45.7cm.4) 1 No. Breaking head assembly with provision to fix flowmeter.5) 3 Nos. Specimen mould 10.16cm I.D. x 7.6cm high with base plate and extension collar.6) 1 No. Kit for specimen extraction, consists of one each load transfer bar, steel ball, specimen extracting plate.Accessories :(a) Integral type Proving Ring capacity 3000 kgs.(b) A dial gauge 0.01 x 25mm(c) Universal Water Bath S.S. with false bottom and pyramid shaped lid to accomodates 3 Nos. marshall specimen(d) Thermometer 0 - 250ºC x 1ºC

We are a well-known Manufacturer, Exporter and Supplier of Lateral Pressure Assembly. The Lateral Pressure Assembly manufactured by our company is known for its superior making as well as the numerous attractive features. The Lateral Pressure Assembly is one of the utility products in the modern times. Features Durable and long-lastingSimple and accurate operationsExcellent performanceResistant to wear and tearHigh quality productAvailable at affordable pricesCompact fitting of the components at the time of assembly Specifications The apparatus consists of a pressure chamber which has a flanged top 2 cap fitted with a 10 kgcmPressure gauge and a valve for pumping in airWater inlet and drain cock are fitted to the chamberThe foot pump supplied easily develops a pressure of 10 kgcm2 Complete with connecting pressure hose Note : Capacity 20kgcm2 Also available

Like Standard Penetrometer we also master in making Automatic Standard Penetrometer. We Manufacturer Automatic Standard Penetrometer with transistorized timer and Electro magnet incorporated in the clutch mechanism to accurately control penetration time to exact five seconds

Owing to our rich industry experience and knowledge in this domain, we have become an eminent Double Ring Soil Infiltrometer manufacturer, supplier and exporter. This laboratory instrument is widely used to determine the infiltration rate of water into the soil and the rate is determinate as the amount of water per surface area and time unit that penetrates the soils. Our well equipped infrastructure unit helps us to ensure prompt and hassle-free production of this Double Ring Soil Infiltrometer.

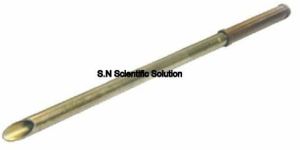

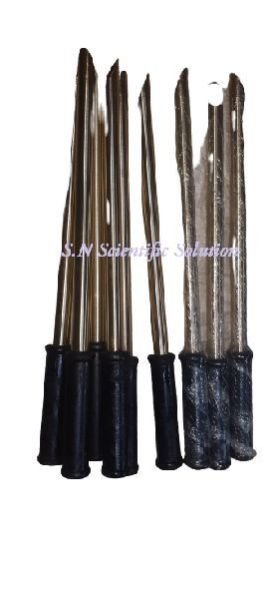

This is a brass tube approximately 53cm long and 2.8cm I.D. with a wooden handle. Total length approximately 73cm. The tube has the sharp angular edge, which conveniently pierces cement bags. An air hole of approximately 3mm dia is drilled on the near handle. Total sample collected at one time is 300cm³ approximately.

We are manufacturing and supplying a wide range of Bench Mounting Mixer & Marshall Stability Testers, which has two speed constant mesh gear box driven by an electric motor fully enclosed within the transmission case. These are supplied with complete stainless steel bowl fitted with handle, beater, hook and heating jacket.

We are instrumental in offering our clients an exquisite range of corrosion test apparatus. The products are fabricated by the proper utilization of high quality raw materials, that are procured from the most reliable vendors present in the market. Apart from this, the offered product range is available to the clients at the most market leading price range. features: high performance seamless finish precisely-engineered cost-effective optimality.

Cement Testing Equipment, Soil Testing Equipment, Concrete Testing Equipmen

Double Ring Soil Infiltrometer Kaizen Imperia

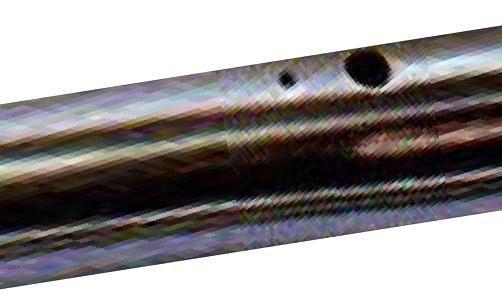

Split Tube Sampler or Split Spoon Sampler is designed to take undisturbed soil samples using the drive weight method as per BS 1377. The split tube section is held together with a ball check valve head and a heat treated drive shoe.
