Power Cables Dealers in Kalbadevi, Mumbai

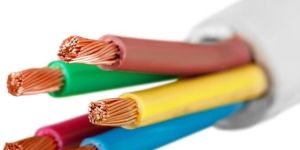

We manufacture and distribute an extensive range of copper & aluminum conductor unarmoured cable. these are highly used in ac single phase or three phase (earthed or unearthed) systems for rated voltages up-to and including 1100 volts or a dc systems for rated voltages up-to and including 1500 volts to earth.

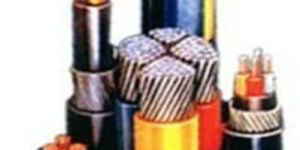

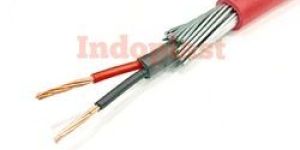

There are many options of cables that we at Prabhat Cables provide for a divergent requirements of applications. Low tension cables are as diverse as they are required in their applications. Whether copper/aluminium/armoured /unarmoured/ fire resistantFR/or fire retardant zero halogen FRZH. The solid or stranded copper/ aluminium cables are insulated with cross linked polyethylene (XLPE) or pvc compound as per requirements of the IS for various cored cables. They are then laid up in cores as per required and bunched together by laying process with appropriate lay length. These laid up cores are then inner sheathed with wrapped pvc tape or extruded pvc sheathing. If required armouring is then done by GI round wires or strip wires wound on this inner sheath. These laid up cores duly inner sheathed and armoured are then inner sheathed with PVC/FR PVC/FRLS PVC or FRZH sheathing compound.

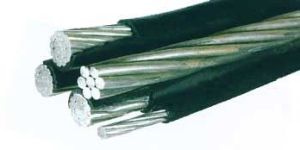

Bunched cables of the penultimate users with our commitment for Quality and Value. These are converted into process specifications based on Indian & International Standards.

Our company “Unique Electro Traders” is India’s renowned Stockiest and Dealers of a wide range of Elastomeric Cables (Rubber Cables). We have more than 55 years of vast experience in Cables and Wires.

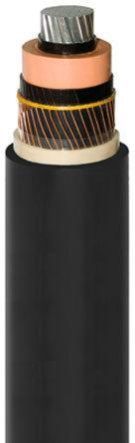

KEI manufactures HT cables up to 220KV conforming to National and International Standards at Bhiwadi plant. KEI has State of Art HT cable plant with German technology. The manufacturing capability is upto 220KV. HT plant is complete with heavy duty machines for wire drawing and conductor making, laying up, armouring , sheathing and packing. The process commences with a compacted circular conductor being fed from the pay off stands into the extruder on elevated platform. The conductor passes through extruder’s crosshead, it is covered first with semiconducting screen layer then the XLPE insulation, followed by the outer semiconducting core screen. This crosshead is specially designed to feed three compounds from three extruders at one point described as Singe point Triple extrusion. Thereafter, the extruded core enters and passes through vulcanizing line known as CCV line (Continuous Catenary Vulcanising) and the XLPE insulated core is cured in the process. In CV line inert atmosphere is maintained by the Nitrogen gas which is at high pressure and high temperature. This process is popularly known as Single point Triple extrusion CDCC(Completely Dry Cured and Cooled Curing)

We manufacture copper flexible and armoured cables. Also a Huge stock is maintained of such cables. Insulations of HR, FR, FRLS, XLPE can be done on client's request.

KEI INDUSTRIES LIMITED is manufacturing LT Power Cables with PVC or XLPE insulation of voltage grade upto 3.3 KV conforming to various Indian and International Standard Specifications. KEI also manufactures other types of cables as listed at the end of this catalogue. CROSS LINKED POLYETHYLENE (XLPE) XLPE means cross-linked polyethylene or vulcanized polyethylene. The basic material is low density polyethylene. Polyethylene is a thermoplastic material consisting of long chain of hydrocarbon molecules. At elevated temperatures these molecules tend to move relative to one another so that the material becomes increasingly deformable and will eventually melt at the temperature around 110oC. By means of process similar to the vulcanization of rubber the polyethylene molecules can be cross-linked. The process of cross-linking or vulcanization consists of producing chemical bonds at interval between the long molecular chain to give a "ladder" effect which prevents slippage between molecules. As a result of cross-linking the material becomes heat resistant and does not soften at higher temperatures. Further it has better resistance to stress cracking and good resistance to ageing in hot air. With the change of structure there is no adverse effect on electrical properties. Advantages of "KEI" XLPE CABLES Dielectric losses are very small. Higher current carrying capacity. Higher short circuit rating 250oC. as against 160oC for PVC. KEI XLPE can retain flexibility down upto – 40oC. Jointing and Termination is easy. Light in weight. They are not prone to fatigue damages due to vibrations or loading cycles. Has better resistance to most chemicals, oils, acids, etc. Can be installed along cable routes without elevation limitations.

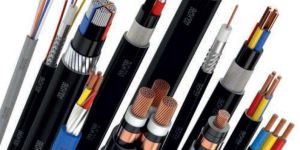

Multicab has established its name in India and abroad for its quality and commitment to customer satisfaction.To meet ever increasing demand of POLYCAB cables, POLYCAB has put up a new state of the art manufacturing unit at Daman (U.T.). The manufacturing of XLPE insulated heavy duty cables is by adaptation of latest technology. The XLPE cables are manufactured as per IS-7098 Part-1 & Part-2 and can also be manufactured to meet the requirements of any of international standards like BS-5467, IEC-60502, DIN etc.The XLPE compound used is obtained from reputed international sources, meeting all required parameters. The cables are manufactured in highly quality conscious environment with testing and inspection from raw-materials to finished cable stage. The assurance to the quality is further ensured by ISI certification on cables and ISO-9002 certification by UL, USA.

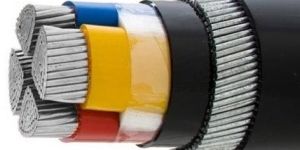

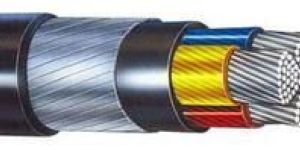

Aluminium armoured cables are available in different categories, Long lasting, wide range availability and high conductivity, Cables &s wires are offered according to client's requirement, Used also in Super Markets, Warehouses, Stadiums, Factories, Workshops, Highways and Stations,Cables &s wires are offered according to client's requirement.

We are offering thermocouple power cables.compensating & original wire thermocouple cables pvc, fibre glass, asbestos, teflon silicon rubber, neoprene rubber, shielded and metal braided varieties of j.k.t. And rtd types, fibre glass and asbestose covered cables. Teflon sleeves 0.5 mm dia to 6 mm dia for different wall thickness and different colors.

Copper Armoured Cables, Aluminium Cables, Flexible Wires, House Wire

Xlpe cables, High Voltage XLPE cables up to 66 KV on a high precision CCV line from ScholzSupermac (Dry Cure Dry Cool system) and Royale Systems, We also offer Low Voltage and Medium Voltage XLPE cables for continuous operation of 105°C instead of normal 90°C offered by competition. This allows more Power transfer for same conductor size.

We have well-connected and capacious warehouse that helps us in arranging products systematically to deal with urgent deliveries and orders. Our exceptionally good warehouse system helps us in keeping the products safe till the final dispatch. With our up-to-date transit facilities and speedy services, timely and safe deliveries are guaranteed.Construction Details : Conductor - Plain bright annealed copper / alluminium, solid / stranded conductor confirming to IS: 8130: 1984. Insulation - Type A, B, & C (HR) grade according to IS: 5831 - 1984 amended up dated. Inner Sheath - Inner sheathing shall done by extrusion or by PVC tape binding that laid up cores shall not loose and prevent to water entering. Armour - Gl armour wire / strip provides not only mechanical support but also earthing. The material use an according to IS - 3975 - 1974 amended up dated. Outer Sheath - Extruded STI / ST2(HR, FRLS, Halogenfree FRLS) type PVC is used according to IS - 5831: 1984. Application : In Thermal Power Station; Petrochemical Refineries; Steel & Cement Plant; Distribution System; Digital Control and Monitoring & Information systems; Air Ports; Building Towers; etc. Techno Flex manufacture heavy duty Power Cable comprising of cores Single / Two / Three / Three & Half / Four Of Alluminium Conductor, PVC Insulated cores laid up, PVC Inner Sheathed OR PVC tape binding, GI wire / Strip Armoured & overall PVC sheathed cable confirming to IS - 1554 : Part-I. Basic assumption for Current ratings : Max. Conductor Temp. - 70oC Thermal resistivity soil - 150oC CM/W Thermal resistivity of rvc - 650oC CM/W Ground temperature - 30oC Amb. air temperature - 40oC Depth oflaying - 75 cm (Highest pt. of cable laid)

Wire Accessories, Cable Accessories, Cables, Electronic Ballas

F M Exim LT XLPE Cables are manufactured as per IS: 7098/ Part 1 suitable for continuous conductor temperature of 90c and short circuit 250c. ‘F M EXIM’ LT XLPE cables have excellent Electrical, Mechanical and Thermal properties, surpassing those of conventional polymeric dielectrics. Due to which F M EXIM LT XLPE cables can be used extensively in power station, industrial units, projects and power transmission and distributions. The superior properties of XLPE have led to lower insulation thickness, high current capacity, reduced weight and dimension. Our cable is the economic solution for low tension power distribution with high efficiency and total reliability. LT XLPE CABLE - FEATURES LT XLPE Cables have longer life as compared to conventional PVC Cables. They have a higher conductor temperature rating i.e. 90°C against 70°C PVC Cables. They have a higher emergency Overload capacity 130°C. Max. Temperature limit under short circuit conditions for LT XLPE Cables is 250°C against 160°C PVC Cables. Hence they have higher Short Circuit Rating. Insulation Resistance of LT XLPE Cable is excellent & superior to identical PVC Cables. They have high corrosion resistance in polluted atmosphere. They have better properties of resistance to chemical and corrosive gases. They have low installation cost because of light weight dimensions and are far more flexible. They have better properties to withstand vibrations, hot impacts. Jointing of LT XLPE Cables is easier and quicker.

Single Core Aluminium Cable, Armoured Cable, Flexible Cabl

We cater precisely engineered Transmission Line Trainer, which is highly acknowledged in various technical institutes, polytechnics etc. The impedance matching of this S 18 Transmission Line Trainer is designed by experts of IIT, Bombay. We have carved a niche as one of the supreme Educational Transmission Line Trainer Suppliers, based in India.

LT XLPE Power Control Cables, Ball Lock Cable Ties, DC Moto

Low Voltage Cables, Galvanized Steel Cable, Spacer Damper, USB Camera Cable

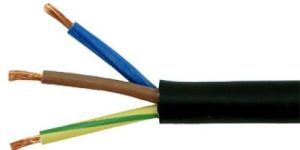

We are counted amidst the most dependable Suppliers and Distributors of the Electrical Power Cables. Having XLPE insulation, these Electrical Power Cables are procured from the most dependable Vendors and Manufacturers in the domain. Made from the best quality materials, these Electrical Power Cables can be purchased from us at the most reasonable rates. Details Insulation : XLPEFor voltage : 11 to 33 KV (e) (UE) as per is: 7098 - I & iiSize : single core 25-1000 sq. Mm & multicore 25-400 sq. MmConductor : Copper / Aluminum unarmored or armoredOuter sheath : PVC / HR PVC / FRLS.

Aluminium Copper Cables, Wire, Cable
