Crgo Lamination
250 - 400 Per Kilogram
Brand Name : JAAS Steel
Material : Magnetic steel
Shape : Coil, Steel Coil, Steel Plate, TL Lamination
Color : Grey, Silver
Surface Treatment : Coated
Application : Industrial Transformer
Certification : BIS
Standard : IS
Type : Crgo Transformer Lamination Core
Thickness : 0.23-0.30
Phase : Single Phase, Three Phase
Composite : Silicon
Country of Origin : India
Pressed Steel Radiator
We are manufacturing and supplying Pressed Steel Radiators in 300mm wide as well as 240mm wide also up to 3000mm length. Pressed Steel Radiators are available in weldeble type (Header type) as well as flanged type. Painting as per customers requirement.
CRGO Transformer Lamination Core
Capacity : 4000 M.T. / Anum.
Transformer core lamination for Power & Distribution transformer is manufactured from various grades of Cold Rolled Grain Oriented (CRGO) steel. Lamination in various shapes & sizes are slit and cut to required accurate geometrical shapes with 90° & 45° cutting systems. The manufacturing of Transformer Lamination involves a high degree of precision engineering.
Nanocrystalline core
Features : High Accuracy Class, High Permeability, High Saturation Flux Density, High and Linear Permeability, Excellent Thermal Stability, Compact Design
Epoxy Cast Resin Vpi Hv Transformer
100,000 - 500,000 Per Piece
1 Set(s) (MOQ)
Moisture proof : High overload capability
Superior Impulse voltage strength : Superior fire resistant design
Maintenance free : Very low noise
Specifications Power-Cast transformers are available with specification as follows : Rated Voltage HV coil : Up to 36KV LV coil : 0.48-4.16 KV *Power-Cast transformers with multiple high voltage connections can also be supplied. Tap Range Standard : ±2.5%, ±5% * Other ratings are available by arrangement. Power Capacity Single phase : 20 - 2,000 KVA Three phase : 50 - 10,000 KVA Frequency : 50Hz, 60Hz Typical % impedance voltage : 4-8%. Connections HV coil : Delta LV coil : Wye with neutral point * Other connections are available to meet requirements. Temperature Ratings HV coil : Class F LV coil : Class F Max. ambient temperature : 450 C Temperature rise limitation : 1800 C
Oil Cooler
1 Piece (MOQ)
Oil Cooler Tubes depending upon the type of cooling water available. We also have data regarding the various Oil Coolers supplied with various Gear Boxes from gear Box.
1 to 5 MVA Transformer
1 piece (MOQ)
Material : Metal
Driven Type : Electric
Warranty : 1 Year
Finishing : Polished
Mounting Type : Ground Mounted
Usage : Industrial

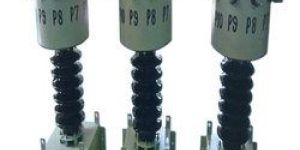

Standard Potential Transformer
Phase : Double Phase
Frequency : 50Hz/60Hz
Warranty : 1 Year
Coil Number : 2
Coil Structure : Toroidal
Accuracy : 0.05%, 0.02%, 0.01% etc.
Details are as follows : Standard PT - Ratio -110 – 220 -330 – 440 – 660 – 880 - 990V / 110V, VA = 2.5, Class =0.1 Standard PT - Ratio -1100 – 2200 - 3300V / 110V, VA = 2.5, Class =0.1 Standard PT - Ratio -6.6kV-11kV/110V, VA = 2.5, Class =0.1 Standard PT - Ratio -22kV-33kV/110V, VA = 2.5, Class =0.1 Standard PT - Ratio -66/63.5kV/110/63.5V, VA = 2.5, Class =0.1
Dry Transformers
5000 kva : 0-1000 volts
Packaging Details : wooden
1500 kva : 0- 22000 volts
Model Number : 2000 kva
Place of Origin : Gujarat, India
The special purpose transformers found their application in areas where the voltage requirement of the machines available differ significantly from the standard voltage. Our special purpose transformers are at the forefront in the industry. We strictly adhere to the international quality standards while manufacturing these transformers. We also entertain custom requirements up to 5000 kva. Moisture Proof: Complete encapsulation of primary and secondary winding in epoxy resin prevents penetration of moisture into windings. The cast resin offers very good protection against adverse ambient conditions. These transformers can work without disruption of service at 100% humidity. No leakage or Pilferage of Oil: As cast resin transformers are solidly cast, problem associated with oil filled transformers like oil leakage and pilferage of oil is completely avoided. Hardly inflammable and self extinguishing: Due to high quality insulation material the transformer is practically non-inflammable by an electrical arc, special fire protection measures are not required. Impulse Strength: Contrary to the conventional dry type transformers the cast coil transformers are better in respect of impulse voltage

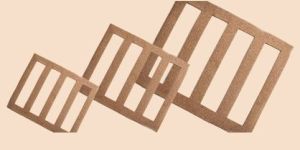

Rubber Cork Frame
50 Per Piece
100 Piece(s) (MOQ)
Brand Name : Chetak
Size : As per request
Shape : As per request
Tensile Strength : As per request
Hardness : As per request
Is It Eco Friendly : Eco Friendly
Packaging Type : Regular
CURRENT TRANFORMER
Inter MM : 30 mm
Outer MM : 80 mm
Ratio : 30/5
Burden : 1.5 VA
Features : Maintenance Free Compact DesignCan be mounted in any positionHigh Dielectric strength & Tracking IndexCan withstand mechanical stresses during fault conditionContinuous Thermal current - 120% Rated Primary CurrentApplication : MeteringProtectionRevenueCore BalanceIndicaiotnSummationAuxiliaryInterposingNeutral DisplacementDifferential ProtectionMeter & UPS manufacturerMotor/ Power Control Center
SRBP TUBES
1000 Meter (MOQ)
We offer srbp tubes. Srbp tubes are produced by winding a pre-impregnated phenolic paper (electrical grade) through heated roller on high pressure rolling machine. It has excellent di-electrical strength in both air and immersed in oil and good mechanical properties, low water absorption and high insulation resistance
Transformer Oil Tank
800,000 Per Piece
1 Piece (MOQ)
Capacity : .5 KL to 90 KL
tank material : MS / SS

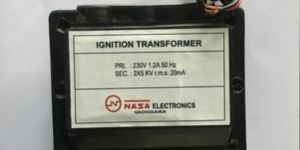

Ignition Transformer
1,800 Per Piece
Phase : Single Phase
Cooling Type : Dry Type/Air Cooled
Brand Name : Nasa
PRL : 230 V, 1.2 A, 50 Hz
SEC : 2x5 KV rms 20mA
Packing Type : Box
rubberized cork strip
Material : EPDM
Thickness : 1.5-2mm
Width : 20-40mm
Texture : Hard
Feature : Crack Proof, Easy To Use
Application : Flooring, Wall
Transformer Tanks
Material : Metal
Condition : New
Leakage : None
Production Capacity : High
We believe in keeping transparency in the transactions and thus we offer an invoice to the clients stating all the necessary details. We undertake both online and offline payment processing methods. We have a team of quality inspectors who check the entire lot of raw material on several counts, prior to procurement. Thus, quality of the finished products is never fortified.

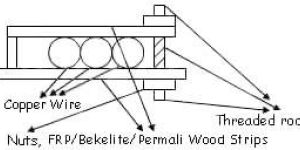

power & distribution transformers
FRP BEKELITE PERMALI Wood Strips used for covering Copper Wire leads are fixed by using FRP Threaded Rod & Nuts. Also FRP Epoxy Pultruded Tubes are used for covering M S Tie rods in order to have electrical Insulation.
Industrial Ultra Isolation Transformer
50,000 Per Piece
Humidity : 95% Rh
Cooling Type : Dry type/Air cooled
Phase : Three Phase
Usage/Application : Industrial
Load Regulation : 3.00%
Power Factor : 0.75 Leading
Transformer Ratio : 1:1 Ratio
Insulation Resistance : 1000 Mega Ohms
Secondary Voltage : 400V
Primary Voltage : 415V
Brand : TCi Electro Power
Distribution Transformer
We offer supreme quality Distribution Transformer. National and international experts have tagged our distribution transformers as perfect and efficient. Several hardcore tests have shown that our distribution transformers are able to resist any heavy load and hardly get damages. Also, they have been engineered as per modern technologies; therefore none can question its credibility. Available in various models, you can get our distribution transformers at the most affordable rates. High demand of our distribution transformers has earned us the position of topmost distribution transformers manufacturer, supplier and exporter from India. Our Distribution Transformer are available in the market by the brand name of Magnetic Engineering. Product Range : Distribution Transformer Ranging from 10 KVA to 5000 KVA, Up to 33 KV Class : Ground mounted / pad mounted transformersPole mounted transformersUnit types transformersRectifier transformersSeries type reactorsOther custom design transformers Single Phase/ Three Phase : 50 / 60 HZSingle/ Dual RatioNaturally cooled (ONAN) or Forced Air Cooled (ONAF).Either hermetically sealed or breathing type with conservator.Conventional or Multi-tap Construction.Tanks with Press Sheet Radiators or Corrugated Tank.Wound Core or Stack Core Construction.Accessories/ Fittings as desired by customer.LV & HV steel fabricated cable boxes.Liquid filling point & drain valve. Optional Features : Free breathing or Hermetically sealedOff-load tap changer with selectorOn load tap changer with drive mechanism & remote tap changer control panelSpecial paint treatmentsDirect mounted outdoor low voltage circuit breaker cabinets up to 4000 AmpsDirect mounted outdoor medium voltage ring main units or switches sf6,vacuum or oil insulatedOil temperature indicatorWinding temperature indicatorBuchholz Relay with conservatorPressure relief device Applicable Standards : IECANSIASStandards IS Quality Assurance Our distribution transformers are tested at all levels of products. Various routine and type tests are conducted in order to guarantee their optimum quality. They are assured to be durable, efficient and flawless. Routine Tests Following Routine Tests are made on every unit : Insulation Resistance TestResistance measurement of windingTurns Ratio TestPolarity and phase relationship testNo Load losses measurementExcitation current measurementImpedance voltage testLoad Loss measurementInsulation oil TestDielectric tests includes applied voltage test and induced voltage test.Leakage Test of transformer tank Type Tests : Type tests are special tests and conducted on every type of transformer. Impulse Voltage TestTemperature rise testShort Circuit Test
Transformer Frame Parts
Our organization has the production capabilities to develop a quality approved range of Transformer Frame Parts. These parts and components are manufactured from high quality alloys, which make them durable and resistant to corrosion & abrasion. These transformer frame parts are precise in design and construction and are appreciated for ease of installation.
hv transformer
With automatic tripping panel. Smart HV Transformer panel.
Step down transformer
15,000 Per Piece
2 Piece (MOQ)
Country of Origin : Made in India
Winding Material : Copper
Cooling Type : Air Cooled
Frequency : 50Hz
Phase : Three Phase
Input Voltage : Upto 1000 Vac
Brand : Transpower
Voltage : 400 V
hv metal bushing parts
We bring forth superior quality HV Metal Bushing Parts that are engineered with precision using latest technology. Known for high performance and durability, our HV Metal Bushing Parts are highly demanded by various industries. These HV Metal Bushing Parts can be availed in different specifications. Features DurableSuperior qualityEasy availabilityAffordable price Available In 17.5KV-52KV to 1000 AMPS-4500AMPS

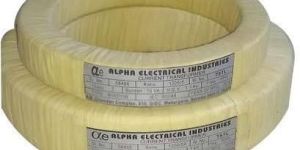

RING TYPE LOW VOLTAGE CURRENT TRANSFORMERS
We have earned a place of reputation in this era of stiff market competition, by providing the best class Low Voltage Current Transformer. Features : Perfect strength Anti-corrosive Easy to install
Low Tension Current Transformers
low tension current transformers’ has been serving electrical industry & providing termination solution for the last five decades & Now serve larger segment of this industry, we are adding instruments transformers, both current & voltage Transformers to our range of product.
Toroidal Transformer
1 unit (MOQ)
Phase : Single Phase, Three Phase
Cooling Type : Dry Type/Air Cooled
Power (VA) : Upto 100kVA
Output Voltage : Upto 1100V
Input Voltage : Upto 1100V
:
Single Phase Distribution Transformer Metal Parts
Material : Brass
Transformer Type : Distribution Transformer
Phase : Single Phase
Capacity : 1.1 KV
Current Range : 250-4000 Amp

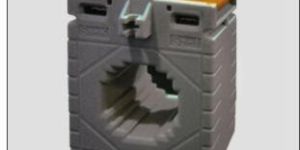

Current Transformers
System Voltage : 720V maximum
Rated primary rating : 30A to 4000A
Rated secondary output : 5A
Rated burden : 1.5AV - 15VA
Class of accuracy : 0.5
Operating frequency : 50Hz or 60Hz
Thermal short circuit current (Ith) : 60xIn
Dynamic short circuit current (Idyn) : 2.5xIth
Instrument security factor : FS<5
Test voltage : 3kV 50 Hz 1 min
Insulation class : E (120°C max)
Case : made from ABS Plastic
Mounting modes : DIN rail
Applicable standard : IEC/EN 60044 -1, BS 3938
Oil Cooled 4 Star Transformer
As a quality-oriented firm, we are focused to provide our clients with an excellent quality Oil Cooled 4 Star Transformer (with Off CKT Tap Changer). Well known for its remarkable features, this transformer is broadly used in railways, mines and other similar industries. Our veteran professionals only use best in class components and contemporary technology while manufacturing this transformer. In addition to this, we offer this transformer to the clients at very feasible price. Features: High performance Sturdy construction Low maintenance
