Electronic Test Instruments Dealers in Patel Nagar, Delhi

EARTHING CONTACT RESISTANCE TESTER is a basic safety test prescribed in many standards to test samples for the proper connection of Earthing with appliance or Unit, throughout the sample. The fall-of-potential test method is used to measure the ability of an earth ground system or an individual electrode to dissipate energy from a site. The earth electrode of interest must be disconnected. The tester is then connected to the earth electrode.It checks the contact resistance between accessible metal parts of the Appliance and Earth by passing a high current and measuring the resultant voltage drop. (The principle of measurement is Ohm’s Law) and the metering and transformers are properly designed to obtain accurate results. The appliance is placed on an insulating surface. The EARTH terminal of the  electrode is firmly fixed to the main Earth terminal of the appliance The heavy duty cables and crocodile clip is firmly connected to the appliance that nullify the cable resistance or minimize the resistance when connected to various accessible metal parts of appliance or unit and a high current is passed between ‘OUTPUT’ and ‘EARTH’.   Distinctive Attributes   > Bench top unit requiring a 230 Volts /110 Volts AC, single phase. > Digital meters are provided for indicating Voltage and Current. > Heavy duty output supply with current limiting. > Over current relay is provided case of output over current. > Test Voltage 12 V AC or 5 Volts AC source as per requirement. > Test Current Range 0~30 A AC, customized current source can be designed as per requirement > Voltmeter Digital > Ammeter Digital

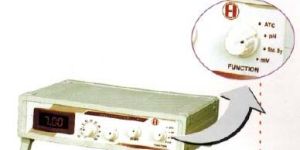

We are counted among the proficient Manufacturers, Suppliers and Exporters of Digital PH Meter (101 & Ill). The pH Meters we make available are manufactured using advanced technology. Buyers are free to place bulk orders of the meters with us and we ensure their timely delivery within the promised timeframe. Buyers can obtain these at reasonable rates from us.

AS 950 is an Analog Meter which displays signal strength, frequency, channel number & VA on the LCD screen,AS 952 displays all the features of AS 950 with additional features of Optical level & Digital level,Sharp Vision Field Strength Meter AS 952 is a "3 in 1" DB Meter for complete trouble shooting in the field, be it DIGITAL, OPTICAL or ANALOG signal. AS 952 goes from Analog mode to Optical & Digital by press of front panel switches.

Water trough : Floating ring type of Consolidometer (Odeometer) cell assembly for 60mm dia x 20mm thick specimens complete with floating ring with two guide rings, pair of porous stones, pressure pad and cutting collar. Set of weights to give a pressure of 10kg/cm. sq. on 60mm dia specimens. Floating ring type of Consolidometer (Odeometer) cell assembly for 50mm dia x 20mm thick specimens complete with accessories as above

We are a leading manufacturer supplier of quality-approved digital conductivity meter. The offered products is composed of components that are in accordance to laid industrial norms and specification. Apart from this, the offered product range is tested at different parameters, so that we can ensure complete assurance over the rendered product range. features: high performance seamless finish precisely-engineered cost-effective optimality specifications: instrument type digital conductivity meter model 215-r display 31/2 digit led range 5 range 0 to 1000m mhos/cm accuracy ±1% fs ±1 digit temperature compensation manual 0 to 100°c cell constant adjustment adjustable digital display conductivity / tds cell dip type power 220v ± 10% 50 hz.

We make available Ph Meter which is widely used in a variety of industries. We assure Ph Meter which would provide most accurate results. What makes our Ph Meter the best in the industry is its elegant designing and high functionality. We offer Ph Meter made using superior quality parts and components. Features Accurate & highly stableManual temperatureElegantly styledSmall, laboratory versionUsable for potentiometic titrations, oxidation-reduction potential (orp or redox) and ioe selective electrode measurements Applications Ph Meter is used for pH measurements in chemical laboratories of : Food & beverage processing, dairies, breweries and dislleriesPurification of (kinking water, pollution control & sewage TreatmentAquaculture & agricultural soil restingPickling, electroplating engraving, anodizing & polishing processes Industries We Serve PharmaceuticalCosmeticsCementCoal ashFuel & crude oilGreasesGlassesAcids and chemicals

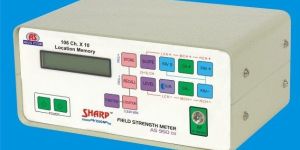

Field Strength Meter: AS 950 DX DB Meter is used to measure Signal Strength, V/A and slope of cable system. Description : Field Strength Meter (DB Meter / RF Level Meter) AS 950 DX Sharp Vision Field Strength Meter AS 950 is Fully Digital, thereby displays Signal Strength Frequency, Channel number and V/A in Digital Display. It's Memory of 106 Channels at 10 Locations makes it a Topper. It is calibrated on Agilent (HP) Spectrum Analyzer for Accuracy.

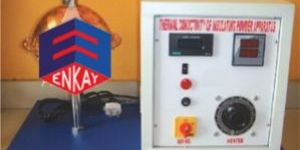

Product Code: EKE 2319The apparatus consists of an insulating powder, which is enclosed in a cavity of two concentric spheres. The inner space of the inner sphere contains the mica heater. Input to the heater can be adjusted by the dimmerstat. The tappings on the surfaces of the inner sphere and outer sphere are used to find out the temperature difference between the spheres. This enables to find out the conductivity of powder.Specifications: Inner sphere dia. 100mm and outer sphere dia. 200mm. Mica heater two heat the inner sphere surface. Ten thermocouple tappings in the test section. Plaster of Paris / asbestos powder in the test section. Panel comprises of Voltmeter and ammeter Dimmerstat Temperature indicator Services required: 220v stabilized single-phase supply. Floor surface 1m x 0.5m at working height.

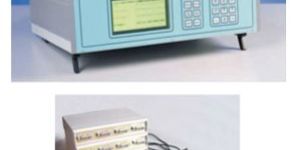

Product Code: EKE3000 Up to 64 input analogue channels,32 of which may be digital  Up to 64 tests can be run fully independently Automatic data collection Automatic test start and stop conditions user programmable time intervals for data collection on board large graphics display and keypad' Menu driven command selection Battery backed data storage and real time clock User programmable time intervals for data collection on board large graphics display and keypad ORDERING INFORMATION   EKE 3000                Data logger (basic unit without input channels)   Accessories   EKE3000 -8A          8 Channel internal Analoeue Module EKE3000-4A          4 channel external Analogue Module EKE3000-4D-MIT   4 Channel external Digital dial gauge Module EKE-3000-SG        4 Channel External Analogue Module for strain gauges EKE3000-APC      8 Channel External Digital Module Interfacing APCs EKE 3000 SPECIFICATIONS Analogue channel input      : LSCT,Pressure or Load Cell (0-100mV) Transfuser Excitation Supply : I O V D C Digital Channel Input        : Digital Dial Gauge input (can be used for load,strain or volume) Local display                     : Large graphics display (240 x 128 pixels) Key pad                              : 20 key Clock                                 :Battery backed real time clock Data storage                      up to 12000 readings for a single channel Host PC Link                     Via RS232,9600 Baud,8 data bits anbd i stop bit Network                             Link Via Rs232,9600 Baud,8 data Power supply                    110-240v AC Iph Dimensions(L X W X H)   :  380 X 450 X 150 MM Weight                               :8 kg     The EKE3000 data logger is supplied as a fully configrable system,which can be upgraded by adding channel modules.up to 32 interval analogue channels,in block of 8 channels within the logger itself and a further 32 channels can be added externally by daisy chaining junction boxes each with 4 analogue or digital channels.

Measure samples in nutrient solutions, water, soils, and tissue sap · Waterproof pocket-sized meter with digital calibration · Sensors store dry and are field replaceable · Accuracy correlates well with laboratory analysis · Unique flat sensor allows you to conveniently and accurately measure samples as small as 0.3 ml · Automatic temperature compensation, waterproof, auto power-off · Includes two CR2032 batteries, case and calibration standards

Gauss Meters, Magnet, Magnetisers, Testing Equipment
