description: our full bore meter is a cost effective flow meter for conductive liquids such as raw water, effluents, potable water and industrial chemical. using time proven electromagnetic flow metering principle, our flow meters are available for pipes from ½” nb to 6” nb. since there are no moving parts, the flow meter gives years of maintenance free service. its performance is independence of temperature, pressure, density and viscosity of medium. the flow meter is obstruction less and hence the pressure drop is almost negligible. we have all the features required in field mountable metering equipment. these include-weather proof / flame proof enclosure, rs485 communication option , with 4 to 20 ma isolated current output for flow signal transmission option for process control. the converter is available as field mounted – ip65 protection category. an optional batching controller also available on request. it works on faraday’s law of electromagnetic induction. a magnetic field is generated by magnetic coil. the fluid flowing through this magnetic field generates emf (voltage) which is proportional to the flow velocity. this emf is measured by the electrodes giving corresponding output. used for precision measurement of any conducting liquid or slurry that is flowing in closed pipes. high accuracy flow metering optional digital transmission 2 line alpha numeric back lit display no pressure drops in process. line size 15 nb to 300 nb accuracy = 1% of reading flow range 0.5 to 10 m/s easy maintenance as no moving parts min.conductivity : 5 us/cm output :4-20 ma,relay and rs485 protection : cast aluminum lp65 field / wall mounted process temp: + 150 degree max. lining : ptfe / rubber / pp

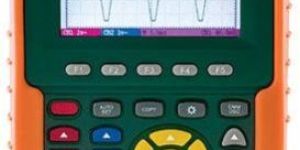

The excellent frequency response the signal amplifiers and the stable triggering abilities from only 5mm peak-to-peak on the screen, enable the scope to display sine waves far beyond Its -3db frequency without any problems. With rectangular signals the instrument's own overshoot is less than 1%. Both scopes contain a second trigger system to ensure stable triggering of asynchronous signal components. Low noise 8 bit flash converters are used to digitize the signals to be analyzed. With memory of 1 Mpt per channel , it gives indepth details for storage and analysis. The well-proven CRT is suitable to reproduce signals with this high horizontal resolution. 2 GS/s allows a clear display of single shot (real time) events. 20 GS/s random sampling is used for repetitive signals. To display variations of a signal over several samples It is recommended to use the envelope or the average mode. Another Important feature is the pre/post trigger function that enables the user to analyze signal components that occur before / after the trigger event. Nie full-size reference memories with 2k points, allow the comparison of signals with those already stored In memory. When the Autoset function is enabled, all relevant parameter settings are performed by the scope's circuitry automatically. The Setup parameters and the measured values are clearly displayed on the screen in alphanumeric characters. Autoset also initiates automatic cursor settings for time and frequency measurement (digital only) as well as voltage measurement. In analog and digital mode, the cursor functions enable the user to analyze a signal while watching the numeric readout for voltage difference, time difference, or frequency values. Another feature is the storage capability for nine complete parameter set ups, which may be stored and recalled simply by pressing the appropriate front panel key. It has a built in calibrator - a 1kHz/1MHz square wave generator. It allows frequent checking of the Instrument's frequency response-from the probe tip to the display on the screen. It also permits high frequency alignment of the probes. Supported by an On Screen Menus adjustments can be performed without opening the scope. With all of the new HAMEG scope range, microprocessors manage the front panel inputs, calculations and other control Functions. In addition, 32bit HISC processors accelerate the digital signal processing. The Instrument may be remotely controlled by any personal computer via its built in serial interface in all relevant functions. A suitable software program is supplied with the scope on delivery.   Features :   Analog 2 x DC to 2000MHz, 2 x 1mV-50V/div Timebase 0.5s/div to 20ns/div Timebase with delay and 2ndTrig. Triggering DC to 250MHz, TV Sync. Separator 1kHz/1MHz Calibrator, CRT with 14kV Digital 2 GS/s Real Time Sampling, 20 GS/s Random Sampling 2 Mpt memory per channel , Memory Zoom up to 100,000:1 Frequency Spectrum display with FFT 2 Channel 1mV - 5 V/cm, TB 2ns - 50s/cm, 4 logic channels(option) Pre/Post Trigger -100% to +400% Math Operations Auto measurements Cursor measurements USB STick and USB/RS232 interface, optional: IEEE488, Ehernet interface

Remote Mounting Integral Mounting inbuilt Display Integral Transmitter inbuilt Display/Panel Mounted Display Teflon Lining M.S./C.S. Full Bore Types   Rubber Lining M.S./S.S. Full Bore Type New Model H3DP/PVC Full Bore Type New Model HDP/PVC Low weight, Low Cost Better Quality Used for Corrossive Fluid & Liquid

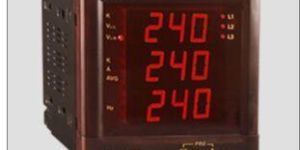

VAF Meter Applications : Control Panel Motor Control Centers Distribution Panels Genset Panels Plant Monitoring Control System VAF meter - VAF 36A (96mm x 96mm) 3 Ø (True rms) Voltage 3 Ø (True rms) Current Frequency Run Hour (Hour-Mins) RPM Programmable CT Primary, PT Primary & PT Secondary VAF meter - VAF39A (96mm x 96mm) 3 Ø (True rms) Voltage 3 Ø (True rms) Current Frequency Run Hour (Hour-Mins) RPM Programmable CT Primary, PT Primary & PT Secondary

With our excellence in this field, we share forefront for supplying world-class array of products from Goa(India). Our company has witness meteoric rise as double voltage double frequency meter supplier, owing to our ability to cater to bulk requirements with ease.

The SBS Battery monitoring system allows users to remotely verify Impedance, voltage, temperature, current and total energy discharged, and gives an up-to-the minute picture of battery back up. Remote access is available by using TCPIP, Land - line (dial - up modem) cellular or satellite links

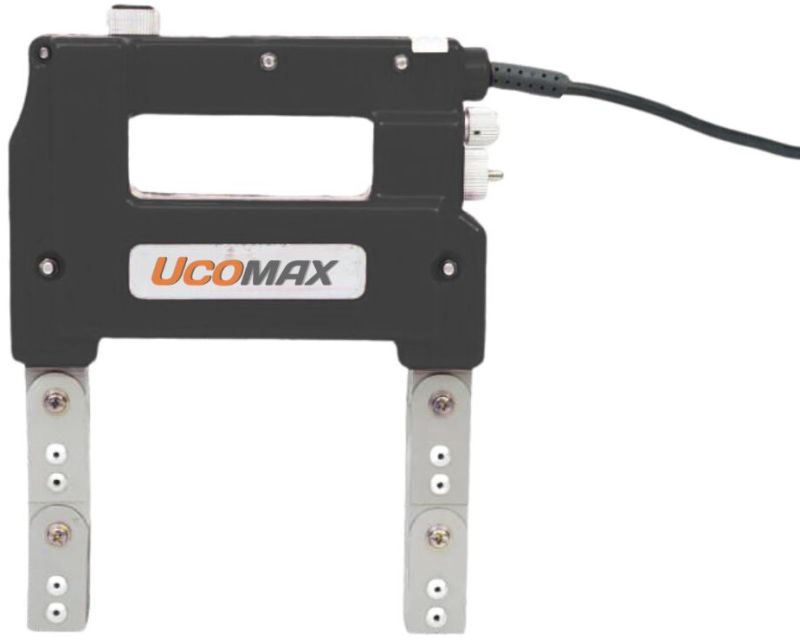

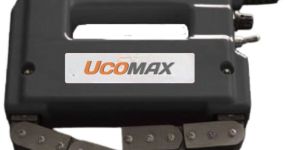

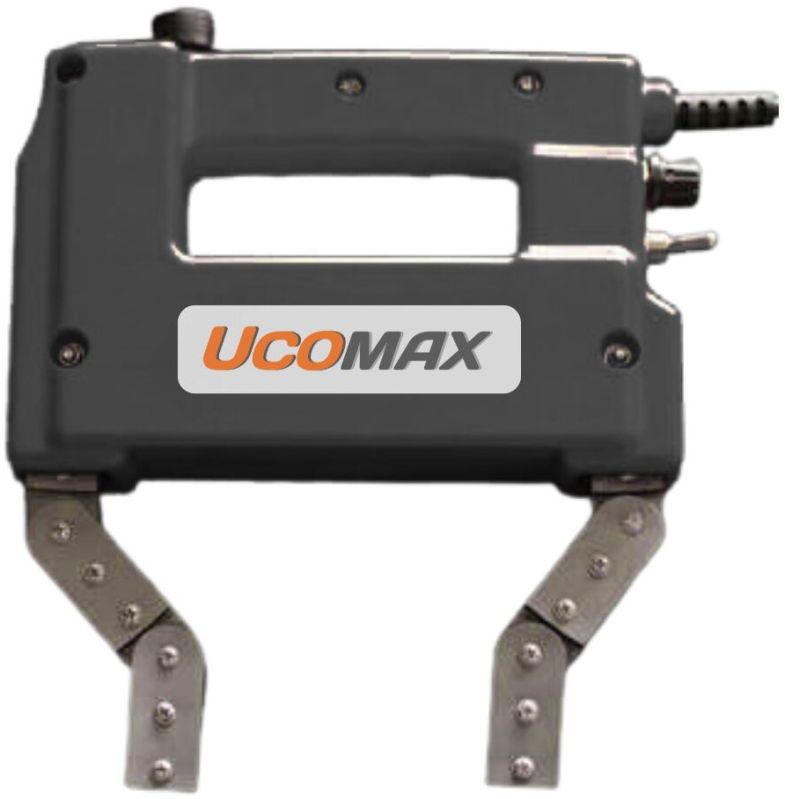

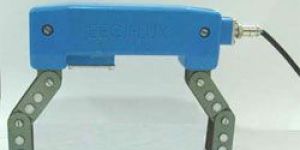

 The AC/DC electromagnetic yoke can operate in both alternating current (AC) and direct current (DC) modes, providing flexibility for a wide range of non-destructive testing (NDT) and magnetic particle inspection (MPI) applications. Features:Powerful AC and DC Magnetic FieldDurable Rugged ConstructionArticulated Adjustable LegExceed ASTM E709 & ASTM E1444 lifting SpecificationsBuilt for safe operations with an optimal duty cycle.

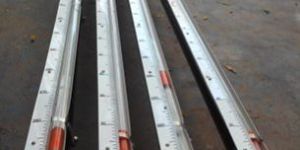

We are proud to offer Side Mounted Magnetic Level Indicator, which is one of the most efficient Level Indicators available in the market. Designed by experts, our Side Mounted Magnetic Level Indicator meets strict international quality and performance standards. Specifications Type Magnetic Level GaugeMounting Orientation Top Mounted, Side Mounted & Top - BottomIndicator System Bi-colour Rotating Roller / Capsule Housing for Indicator For Bi-colour Roller - RAIL in Aluminium or SS Housing System For Capsule - Heavy Walled Glass Tube in Aluminium / SS HousingMOC of Indicator ABS PlasticFloat Chamber Non Magnetic Standard pipeMOC of Float ChamberSS 304, SS 304L, SS 316 SS 316L, PP, PVDF, Others on requestFloat SS 304, SS 304L, SS 316 SS 316L, PP, PVDF, Others on requestProcess Connection Flanged in various sizesVent ½"Plugged /½"Needle Valve / ½"Ball ValveDrain ½"Plugged /½"Needle Valve / ½"Ball ValveScale Aluminium / SS / Acrylic engraved in mmLimit Switch Assembly Snap Acting 1 SPDT Micro switch, 5A, 230 VAC or 24 VDC X 2 amp reed SwitchSwitch Housing *Aluminium Die Cast Weatherproof to IP - 65 * Aluminium Die Cast Explosion proof suitable for Group IIA, IIB * Aluminium Die Cast Explosion proof suitable for Group IICElectrical Cable Entry ¾"ET (F) Centre to Centre DistanceBi-colour Rollers - upto 6000 mm Capsule - upto 6000 mmMax. Operating Pressure 15 Kg/cm2 (others on request)

Magnetic Level Indicator manufacturer in India. These Level Indicators are flanged to the tank for indicating level of liquids and liquefied gases in open or closed tanks. These can be used in high temperature and pressure applications or if sight glasses and similar indicating glass parts cannot be used for safety reasons. This instrument is preferred because there is a safe pressure and gas tight separation between measuring and indicating parts. Thus the MAGNETIC LEVEL INDICATOR is suitable for a wide range of applications for the chemicals, pharmaceutical industries, petrochemical industries, refineries, oil and fuel tanks etc.

This is working on the principle of Faraday's law which states that when a conductor moves through a magnetic field of a given strength a voltage is produced in the conductor and proportion to the relative velocity between the conductor and the magnetic field. Digital Flow Meter Has A Wide Range Of Application In Many Industries Like: Petroleum Products Acid & Alkaline Solutions Edible Oil Food Stuff Liquids of high viscosity Pains & Varnishes Corrosive liquids Chemicals Effluents water Salient Features Of The Flowtech Digital Flow Meters: Nominal diameter from 15mm to 400mm for a wide range of purposes. The material of Construction used is like MS, SS 304, and SS 316 & SS 316L for maximum life and durability. Accuracy : ± 1% FSD Optional: ±0.5% FSD Protection Class for Sensor : IP 65 Incline Flange Type of Installation Cable Length for Remote : 10 meters Repeatability : 0.3% Power Supply : 230 VAC, 110 VAC & 24 VDC Output: Std. 4 – 20 mA

Thanks to our modern transit facility, that ensures safe delivery of the orders at required destinations. Known for exceptional product basket containing Digital Energy Meter, we are a reliable name in this sphere.   Approx Price : Rs 10,800 / Piece(s)   Following are the salient features of our range : Precise motor protection against ‘Over Load’ with electronic current sensing technology Additional protection for motor winding against high voltage condition Durable ‘soft touch’ electronic push buttons for manual on, off & reset operation Separate compartment for capacitors allows easy replacement of capacitor on site Built-in level controller for automatic pump operation based on tank water level Combine function of starter, indicators, timer & level controller in single compact unit Convenient terminal arrangement for connection & wiring   Our range of Digital Energy Meter finds application in the following segments : Applicable as protection & control device with various type//types// of single phase motors & pumps to 3 hp & three phase motors & pumps up to 7.5 hp Protection of equipment motor against over load as well as over voltage For O/H and U/G tank level based automation of water supply system in domestic, commercial & industrial purpose Automation of dewatering and drainage pumping system As control system for various booster pumps As auto switch in agriculture with single phase submersible pumps Preferential automation of multiple pumps in large commercial water supply application

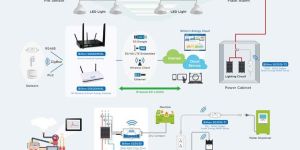

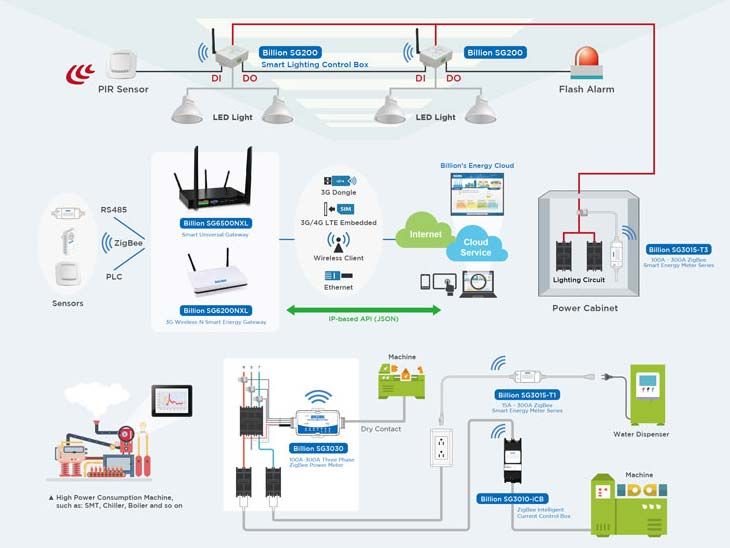

An Energy Management System is a system of computer aided tools used by operators of electric utility grids to monitor, control and optimizes the performance of power generation and transmission system. Energy management systems are being widely used by every power station and power Generation Company. Energy is a valuable resource which is obtained by investing a huge amount of resources; hence its management is very essential. We supply Energy management systems for both domestic and industrial utilities.   Essential Points Connectivity Options : SATEC, L&;;T, Schneider Electric, Socomec, Rishabh meters, Modbus Serial and TCP protocol.     Configurator helps in the configuration of locations, loops, devices, tags names, etc.  Data Acquisition Server. Graphics / Display (SLD) Trend Client Web Based Standard Reports : Consumption patterns, Alarm Reports, Billing Report.      Notification Systems : Email, SMS, Phone calls with confirmation of receiving, Relay contact.       Third Party Integration.      Centralized monitoring thorough client software provides SLD and trends.     Rule based logical alarm system to generate alerts and reduce the energy consumption or risk in operation. Security Levels : Guest, Operator, Manager, Admin.
