Testing Equipment Dealers in Rajendra Place, Delhi

Product Code: EHR 500EHR-500 can be used directly to measure Rockwell hardness and plastic Rockwell hardness, and it can change the value of Rockwell hardness into HB, HV, HLD, HK and ób value. Provided with many features such as High Measuring Precision, Wide Measuring Range, Automatic Test Force Changing According the Scales Automatic Main Test Force Loading/Unloading Measuring Results Digitally Display and Automatic Printing Communicating with External Computer and etc. The Tester is suitable for the Hardness Testing of Carbon Steel, Alloy Steel, Cast Iron, Non Ferrous Metal, Engineering Plastic and etc. Specification Total test force - F 588.4N(60kgf), C980.7N(100kgf), C1471N(150kgf), Scales - HRA, HRB, HRC, HRD, HRE, HRF, CHRG, HRH, HRK, HRL, HRM, HRP Load cycle - 3~8s Load dwell duration - 2~50s Resolution - 0.1HR Display - High definition backlight LCD Operation - Menu selectable, Membrane keypad Auxiliary functions - Upper/lower limits setting & alarming, Data statistics, Avg., Max., Min., S, R, S c a l e conversion, HV, HB, ƒÐb, Curved surface correcting automatically Data output - RS-232/USB data output to printer or PC Memory - Max 500 items of test results stored automatically Testing space - 200mm in vertical, 165mm in horizontal Dimensions - 550mmx200mmx720mm Power supply - single phase, AC, 110V, 50~60Hz, 4A Net weight - 100kg Standard Delivery Host machine EHR-500 1 Standard hardness block for A scale 1 Standard hardness block for B scale 1 Standard hardness block for C scale 1 1/16” Steel ball indenter 1 120” cone diamond indenter 1 Mounting screws for indenter 2 Round plane anvil 1 “V” shape anvil 1 Power supply wire 1 Screwdriver for indenter mounting 1 Dust cover 1 Built-in Printer (For EHR-500P Only) 1

Product Code: EKE 217-S2Standrad: ASTM 2938 Load Frame : EKE 065 Capacity : 200 kN?Speed : 12Providing Ring : 100 kN - EKE 275Platens, Spherical Seating / Rigid Seating - As perASTM - 2938 requirements   This equipment is used for determining unconfined compressive strength of intact rock core specimens. The rock sample is cut to length and the ends are machined flat. The specimen is placed in a loading frame and if required heated to the desired test temperature. Axial load is continuously increased on the specimen unit peak load and failure are obtained.

Appreciated for optimum performance, long functional life and sturdy construction, optimum performance, the Equostat Hardness Tester we make available are preferred by buyers across different countries like America, Australia, Dubai and many more. These testers give excellent performance in measuring the hardness of various materials and have long service life. Look for us to buy dimensionally accurate and robust Equostat Hardness Testers at market-leading prices.Details : Static Low-load Measurement Based On The Rockwell Principle Accurate, rapid, and reproducible results from measurement of penetration depth under defined forces and therefore : Independence of material (no choice of material curves necessary) Independence of body dimensions and geometry Measures from one side - no backing necessary Excellent sensitivity through small penetration of a few μm and therefore, particularly suitable for scratch-sensitive and polished surfaces, thin parts, profiles and pipes with a wall thickness = 2 mm hardness profile in heat-affected zone of welding seams.

Determination of resistance of any fabric to abrasion is usually carried out by abrading the fabric under specified conditions against a standard abradant.

Measure samples in nutrient solutions, water, soils, and tissue sap · Waterproof pocket-sized meter with digital calibration · Sensors store dry and are field replaceable · Accuracy correlates well with laboratory analysis · Unique flat sensor allows you to conveniently and accurately measure samples as small as 0.3 ml · Automatic temperature compensation, waterproof, auto power-off · Includes two CR2032 batteries, case and calibration standards

Gear Testing attachement is unique in design and ment for inspecting concentricity and commulative errors of Gears with respect to gear axis.

We Manufacturer , Supplier & Exporters of wide range of Centrifuge Extractor. The Hand Operated Centrifuge Extractor, manufactured and supplied by us, is an instrument that is used for determination and checking of bitumen percentage in bituminous mix which is added with solvent and dissolved bitumen is removed by centrifugal action. Hand Operated Centrifuge Extractor manufactured by us consists of a removable aluminum rotor bowl, capacity 1500 gm with a cap and tightening nut.

Our company is a known manufacturer of excellent soil testing engineering machinery. The Relative Density Test Apparatus provided by us confirms to IS 2720 (PART XV1), ASTM D 4253 AND ASTM 3 4254. It is used for analyzing the relative density of adhesive free draining. Specifications The equipment consists one each of: Vibratory table, with a cushioned steel vibrating decks about 75cm x 75cm. It has a frequency of approximately 3600 vibratory table, minute under a 11.5kg load. Amplitude is variable in between 0.65mm in step of 0.05 to 0.25mm, 0.25 to 0.45 mm and 0.45 to 0.65mm. Suitable for operations on 415V, Three Phase supply. Cylindrical metal unit weight mould, 3000ml. Capacity.Guide sleeve with clamp assembly. Surcharges base plate for mould. Handle for surcharge base plate. Surcharge weight. The total weight together with surcharge base plate and handle is equipment to 140 kg. sq. cm. For mould. Cylindrical metal unit weight mould 15000 ml. capacity. (Total weight together with the above mould & surcharge weight is equivalent to 140 kg.sq. cm) dial gauge 0.01mm x 50mm travel. Extension piece 25mm for dial gauge. Why Our Relative Density Test Apparatus? Confirms to quality standardsAccurate analysis of denisty of adhesive free drainingGood components and raw mateiralsDiscounted rates

The equipment consists one each of: Vibratory table, with a cushioned steel vibrating decks about 75cm x 75cm. It has a frequency of approximately 3600 vibratory table, minute under a 11.5kg load. Amplitude is variable in between 0.65mm in step of 0.05 to 0.25mm, 0.25 to 0.45 mm and 0.45 to 0.65mm. Suitable for operations on 415V, Three Phase supply. Cylindrical metal unit weight mould, 3000ml capacity. Guide sleeve with clamp assembly. Surcharges base plate for mould. Handle for surcharge base plate. Surcharge weight. The total weight together with surcharge base plate and handle is equipment to 140 kg. / cm2. For mould. Cylindrical metal unit weight mould 15000 ml. capacity. (Total weight together with the above mould & surcharge weight is equivalent to 140 kg./ cm2) dial gauge 0.01mm x 50mm travel. Extension piece 25mm for dial gauge

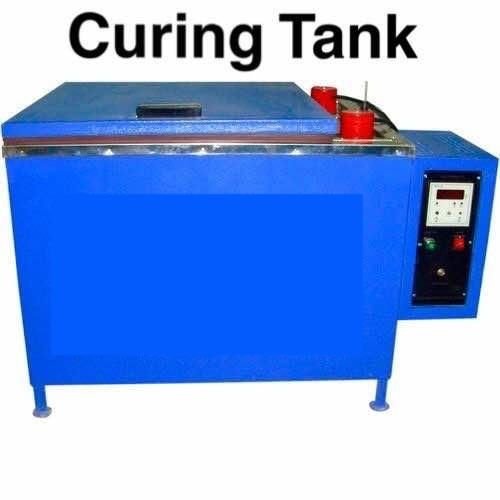

Accelerated Curing Tank having capacity to accommodate 6/12 specimen of  Concrete Cubes of 150mm size with a facility for accelerated curing by Cooling and Boiling water method up to temperature range : 10°C to 100 +/- 2 °C as per IS standard IS : 9013. Tank will consist of a rectangular double walled metal cabinet, inside lined with stainless steel, outer powder coated. Easily replaceable high Wattage heaters are mounted in side the chamber. A slow speed stirrer is provided to circulate water inside the chamber to maintain the uniform temperature of water. A strong stainless steel perforated platform is provided for keeping the cubes and also have a lid with lifting handle to cover the chamber. The temperature is indicated and controlled by a DIGITAL auto tuning PID Temp. Controller with soak timer to control the duration of heating and then to shut down the system without manual attendance. The front panel will have power supply indicating lamp, control action indication lamp and one main switch. Suitable for operation on 220 V, 50 Hz single phase, AC supply or 440 V 50 Hz, three phase AC supply, for bigger size of curing tank.

We are offering rockwell hardness tester. as a quality-centric organization, we are able to come forth with the wide spectrum of rockwell hardness tester for our respected costumers. These products are used for carrying out hardness tests on metals and alloys of all kinds hard or soft, from carbides to plastics, covers standard scales a,b,c,d,e,f,g,h and k also additional scales l,m,p,r,s and v. features: cost-effective highly durable optimality high performance seamless finish competitive price wide industrial use.

KEWIL Blain Air Permeability Apparatus IS : 4031, IS : 5516, BS : 4359 Part-II The apparatus comprises one each of permeability Cell “U” tube manometer with stop cock mounted on a laminated wooden stand, perforated metal disc, plunger, Rubber, Stopper, Rubber tube with rubber bulb.

Our company is enlisted among the nonpareil Manufacturers, Suppliers and Exporters of Digital PH Meter (112). Strict quality-tests based on different parameters like accuracy, performance, functional life ensure that only defect-free meters reach the buyers. Courtesy our brilliant logistics network, we are capable of delivering bulk orders of these within the promised timeframe. One can obtain these at competitive rates from us.
